About this project

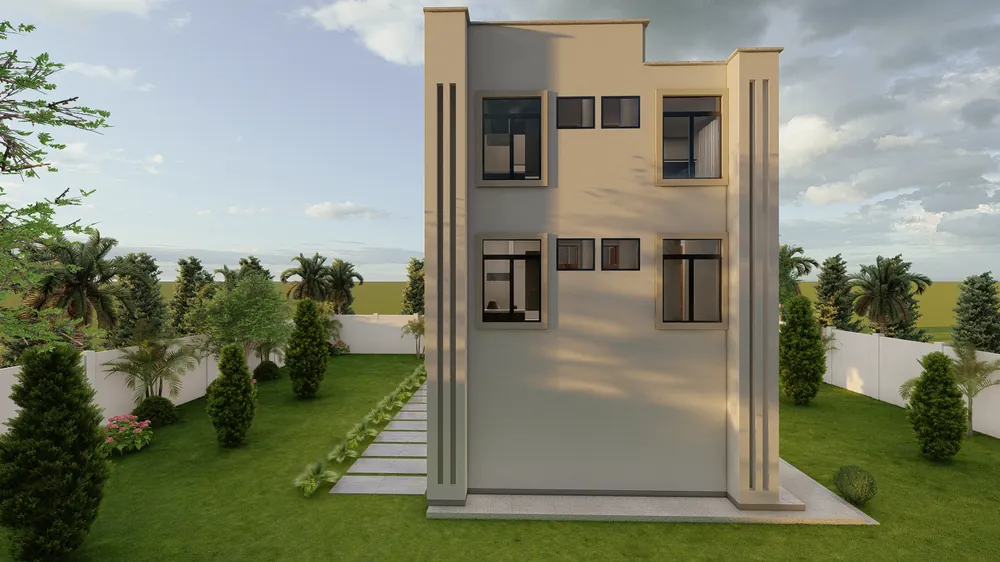

A compact three-storey house on a narrow plot, studied through several facade treatments over identical massing — a diamond lattice screen, vertical timber slats, and fluted fins with a full-height glazed stair. The same plan, asked to present three different faces to the street.
Key features
- Three storeys on a narrow urban plot

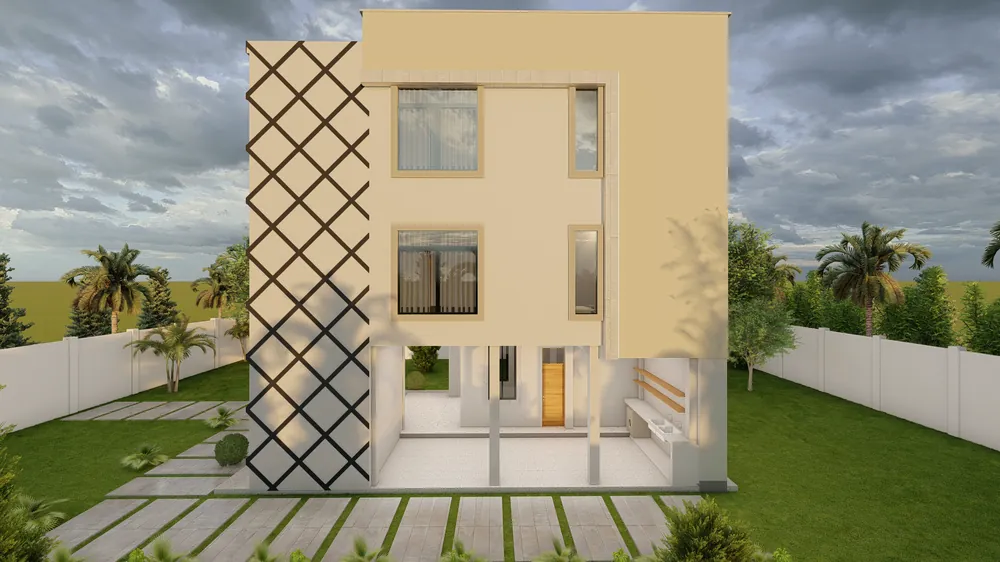

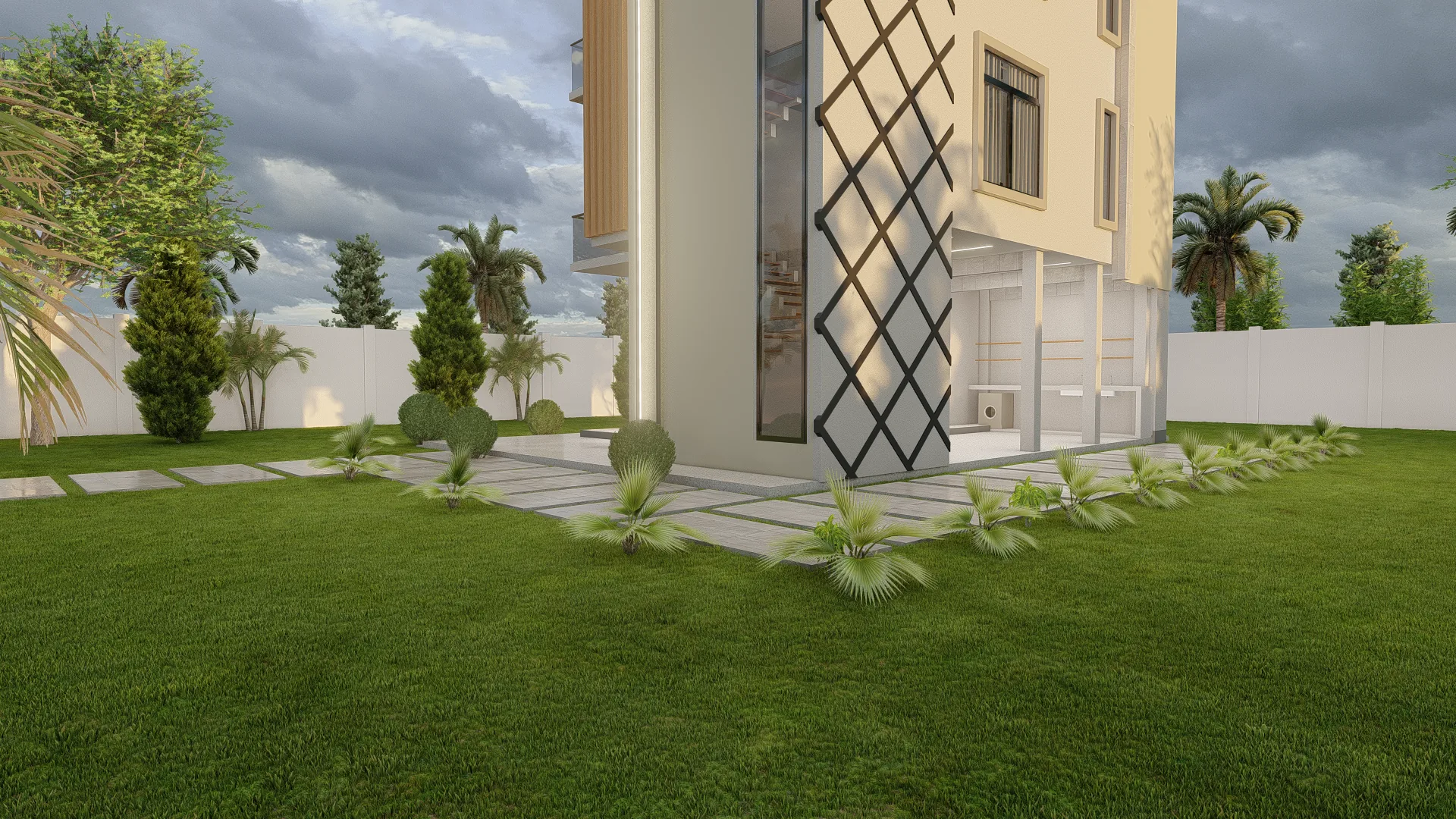

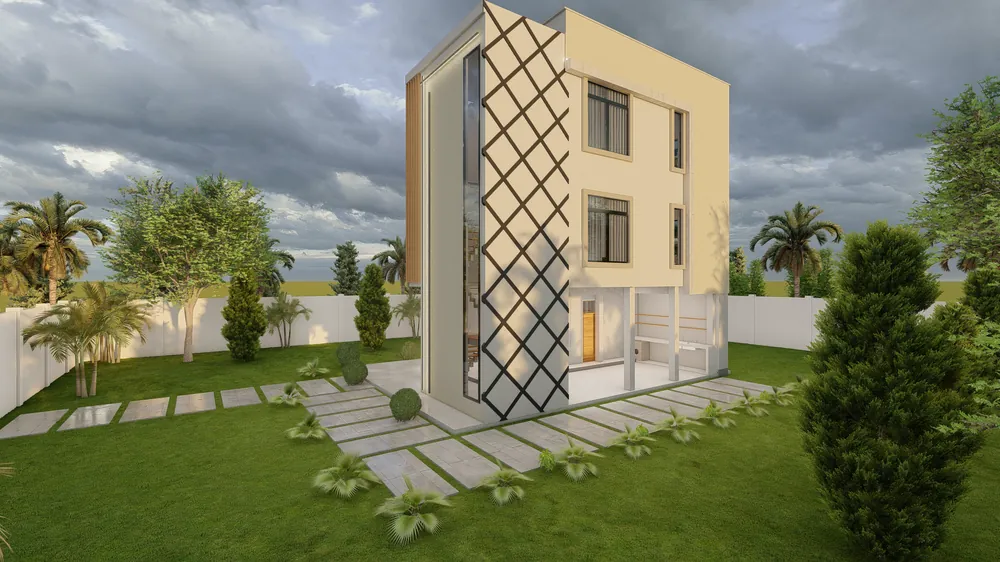

- Diamond lattice screen shading the stair core
- Alternative treatment in vertical timber slats

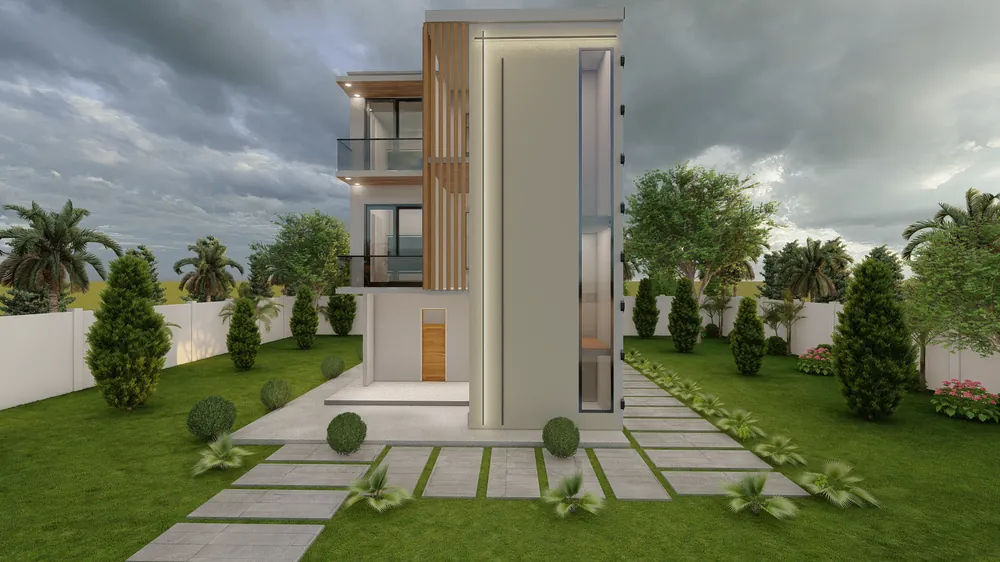

- Full-height glazed stair tower

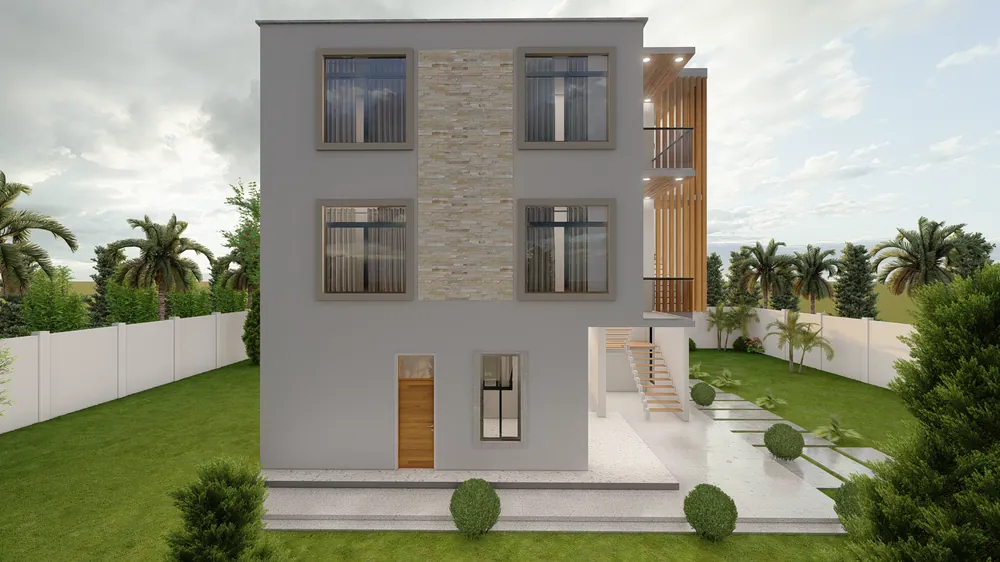

- Stone-clad base with external terrace stair
Gallery
Click any image to open it full size.
More projects
View all
Masterplan35Residential Estate Masterplan

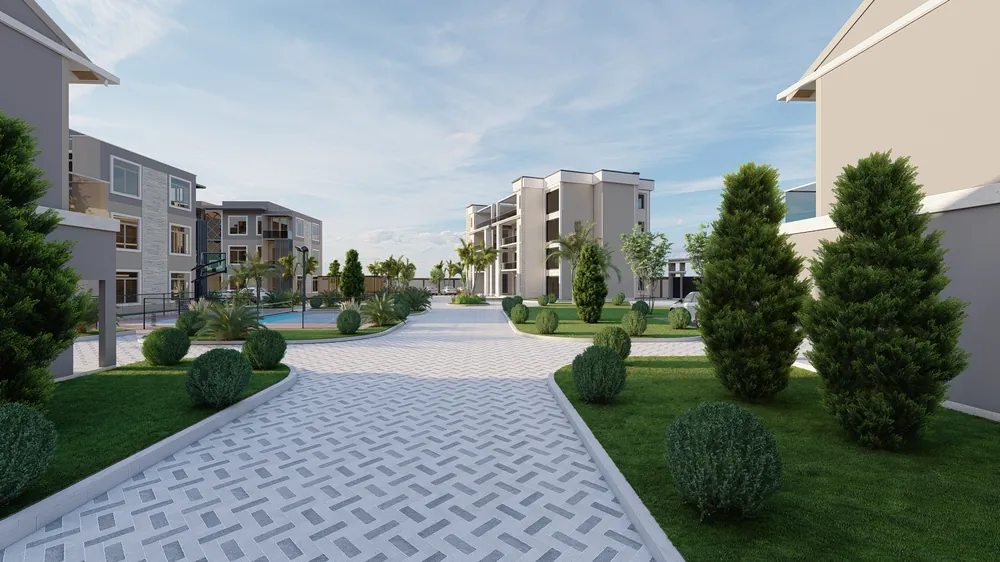

A gated, mixed-density residential estate laid out around a central roundabout and landscaped spine. The scheme combines two- and three-bedroom townhouse rows, a multi-storey apartment building and detached villas with a shared amenity core.
Twin Duplex & Apartments23Two Residential

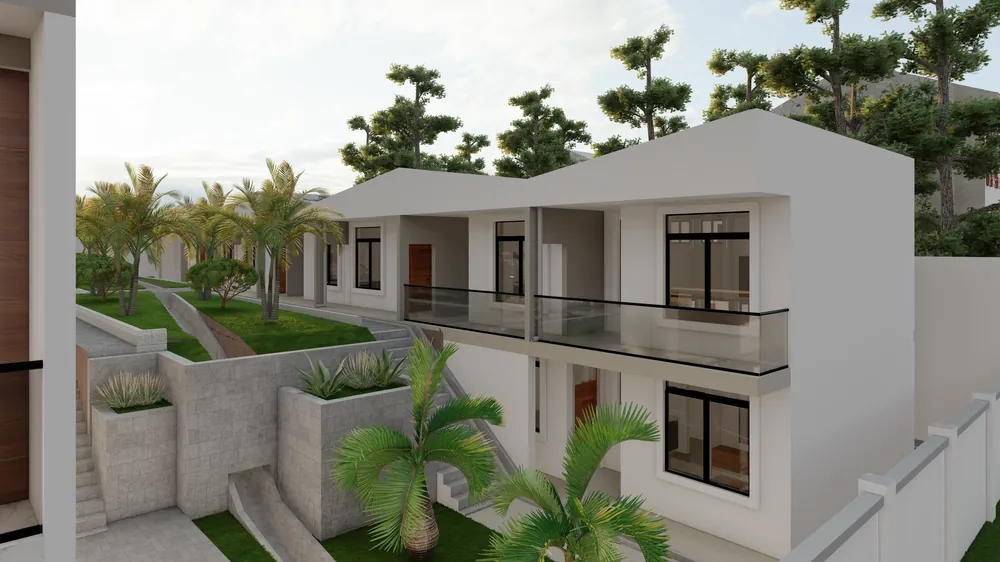

A pair of mirrored two-storey duplexes sharing a party wall, set against a terraced row of self-contained apartments. The site falls across its width, so the row is stepped and the duplexes gain a basement level behind retaining walls. A separate apartment building was added to the scheme on the later issue.
Private Residence31Private Residence — Option 1

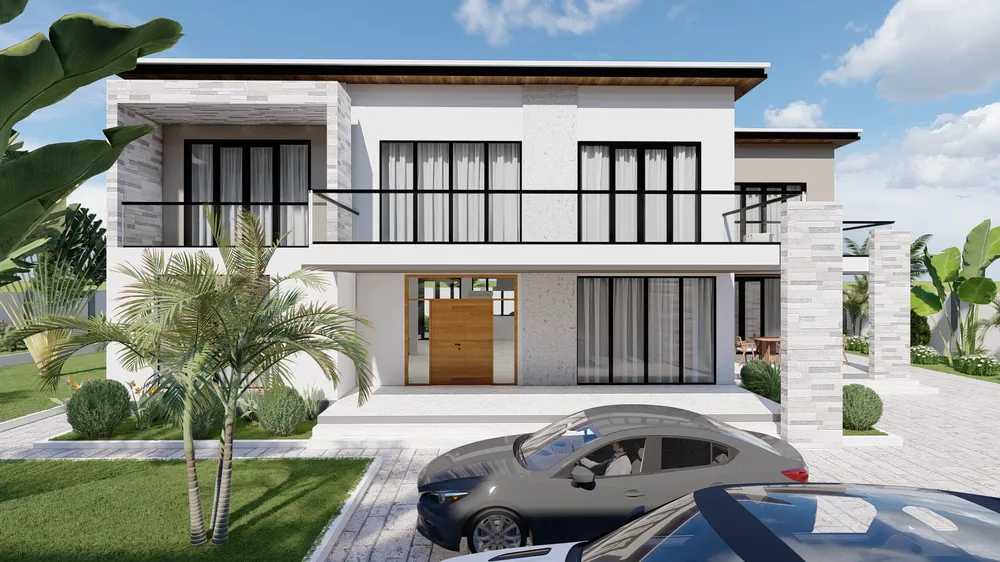

The first of two schemes for the same plot, shown here as revised. Option 1 puts the family home over two storeys with stone-clad piers and deep balconies, keeping the length of the site free for a revenue-generating apartment row along the boundary.
